Product Details
＋
Aims Power - 2000 Watt Pure Sine Power Inverter - Industrial Grade - 12 VDC 120 VAC 50/60Hz - PWRIG200012120S
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- 2000 Watt continuous power
- 4000 Watt surge
- 12 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient – improved output at low voltage
- 1 – GFCI Dual Outlet

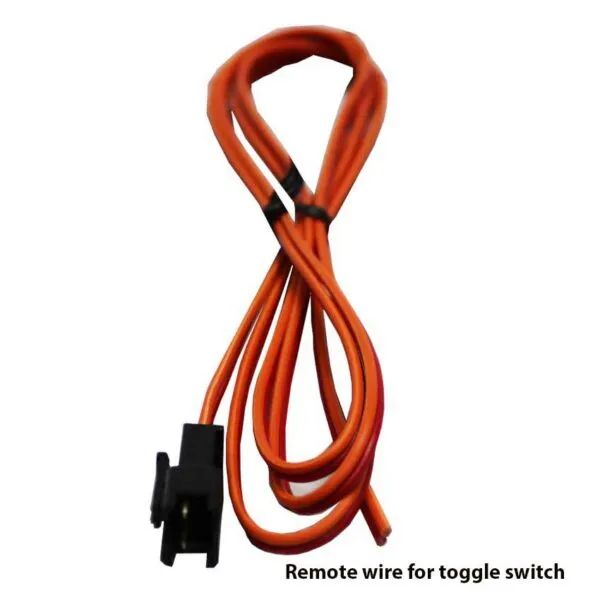

- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- DC volt meter included
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Specifications
Power Specifications:
- Continuous output power: 2000 Watts
- Surge power capability (peak power): 4000 Watts
- DC input / operating voltage: 10.5-16 Volts
- AC amps: 16
- Output voltage: 120 Volts ac
- Output voltage regulation: /- 3%
- Output wave form: pure sine wave
- Output frequency: 50/60 Hz
- THD: <5%
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
Battery and Power Consumption:
- Battery low voltage alarm: 10.5 /- 0.5 Volts
- Battery low voltage shutdown: 10.0 v /- 0.5 Volts
- No load power consumption: fan off <0.70 DC amps or fan on <1.05 DC amps
- High input voltage shutdown: 17V
- Low input voltage shutdown: 10V
Temperature Controls:
- No load minimum operating temperature: -4 degrees Fahrenheit
- Full load maximum operating temperature: 176 degrees Fahrenheit (automatic shutdown)
Physical Characteristics:
- Product size (L x W x H): 16.54” x 8.86” x 3.50”
- Weight: 12.13 lbs unit boxed 15 lbs
Additional Features:
- GFCI Resettable AC Outlet
- Internal blade fuse protection
- Includes DC volt meter
Dimensions
Unit Dimensions:
- Length: 16.54 inches
- Width: 8.86 inches
- Height: 3.50 inches
Weight:
- Unit weight: 12.13 lbs
- Shipping weight: 15 lbs
