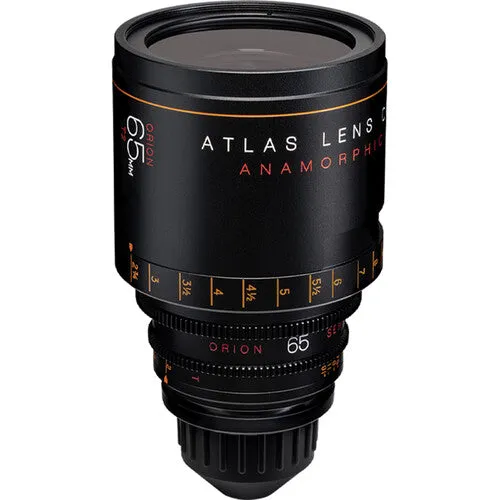

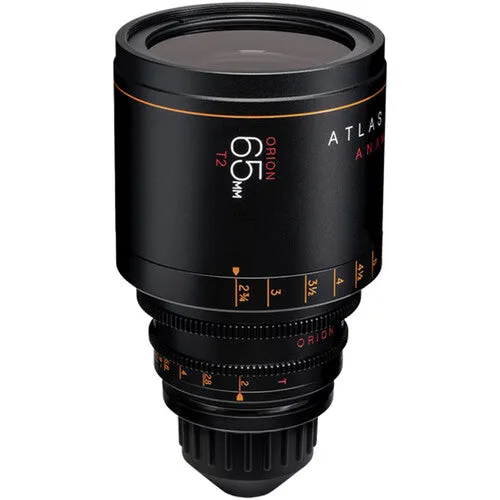

Designed by cinematographers for cinematographers, the Orion 65mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super35-sensor cine-style cameras. The 65mm creates a wide-angle field of view with the shallow dept of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas adapter. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open. This mechanically dependable prime lens features a design standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 65mm prime comes with focus marks in feet but can be switched by the used to meters using a separately available focus scale.

2x Vintage Anamorphic Look

• Creates twice the horizontal field with the same vertical field of view as a similar spherical lens

• Creates a wide-angle view with the shallow depth of field inherent to a telephoto prime

• Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open

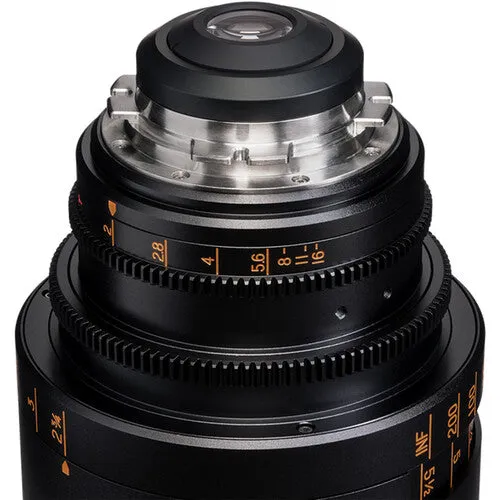

Interchangeable EF/PL Mount

• Compatible with ARRI PL-mount cameras or Canon EF-mount cameras when used with the separately available lens mount.

• Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters

Super35 Coverage

• Covers up to Super35-format camera sensors

• Use with the separately available Atlas 1.6x LF extender for full-frame coverage

Fast T2 Aperture

• A fast T2 aperture enables low-light capture.

• Stopping down to T2.8 or less produces a crisp, flat-field look

Standardized Design

• The mechanically dependable design is standardized across the series for reliable performance

• Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig

• The standardized 114mm front diameter is compatible with many filters and matte boxes

• Custom support feet are available separately

Wide Barrel Rotation

The 270° of focus barrel rotation enables smooth, precise focus pulls

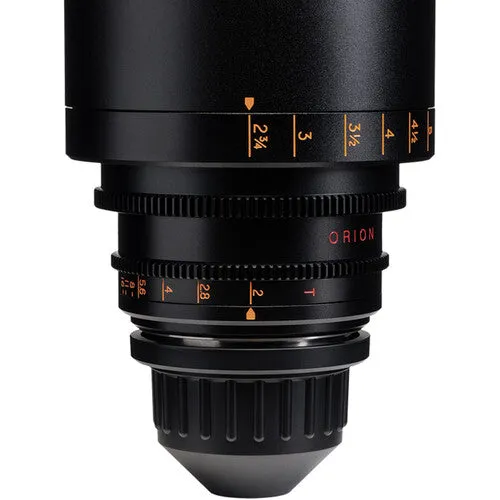

Adjustable Focus Scales

• The focus scales are adjustable in the field for maximum accuracy

• Focus scales in feet can be replaced by the user with those in meters, and vice versa

Features

• Covers Super35 Format

• Interchangeable EF/PL Mount

• T2 to T16 Aperture Range

• 0.8 MOD Focus & Aperture Gearing

• 14-Blade Iris

• Streak Effects

• 2.8' Minimum Focus Distance

• 114mm Front Diameter

• Focus Marks in Feet

• Weighs 5.1 lb

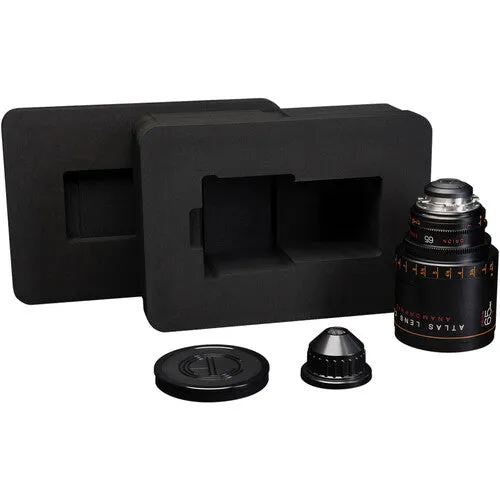

What's in the box

• Atlas Lens Co. Orion 65mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)
