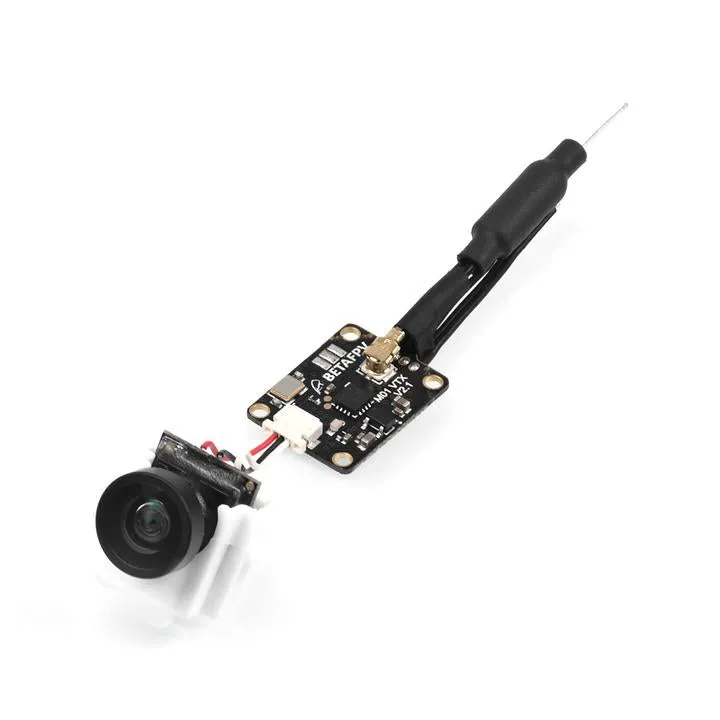

M01 AIO Camera 5.8G VTX V2.1 is upgraded into a wired version, easy to connected with the camera. With the ultra-lightweight 2.72g, it comes with a super Mini 5.8GHz FPV Transmitter, 800TVL FPV Camera and RG178 Antenna, features 6 bands and 37 channels on the 5.8GHz band with Raceband which is perfect for Pro Series and Brushed Whoop Drone.

FEATURE

• Lighter than Z02 AIO Camera VTX, perfect for Micro Drone
• Suitable for Pro Series and Brushed Whoop Drone
• 30° tilt Camera Mounting hardware is provided to suit your preference

SPECIFICATION

• Item: M01 Camera AIO VTX V2.1
• TVL: 600TVL
• FOV: H:120°/V:100°
• Video System: NTSC
• Horizontal Resolution: 640X480 1/4”
• Output power: 25mW
• Supply Voltage: 5V
• Size: 18*14*4.5mm(VTX)

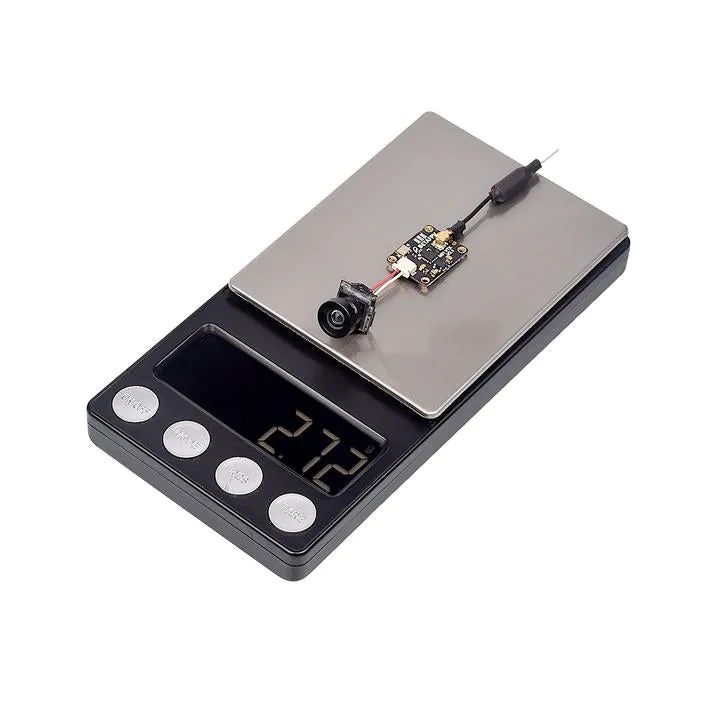

• Weight: 2.72g
• Antenna: RG178 Antenna
• Frequency: 5.8GHz 6 bands 37 channels, with Raceband: 5362~5945MHz

Component Layout Diagram for M01 VTX

How to Connect with FC

M01 VTX comes with pluggable pins, which is convenient assembly with brushed FC like F4 AIO 1-2S FC.

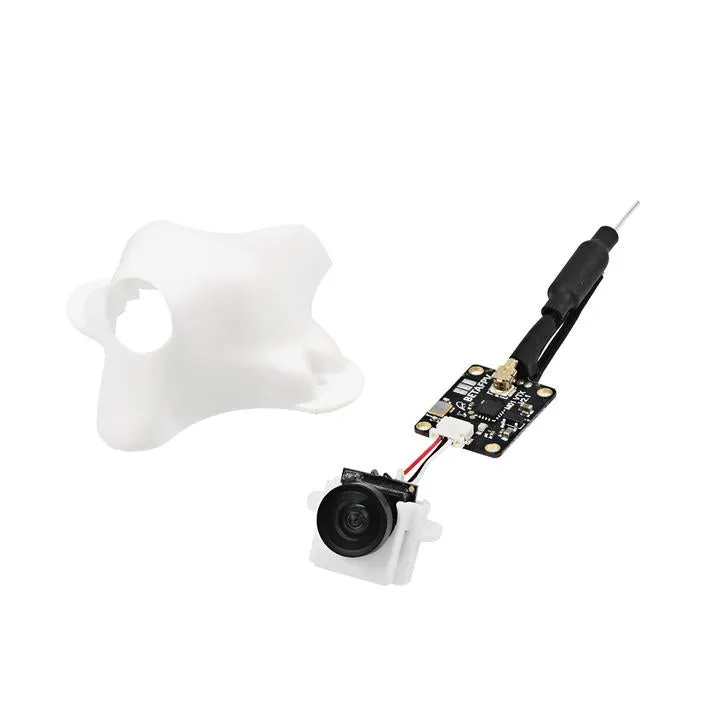

• 1 * BETAFPV M01 AIO FPV Camera VTX
• 1 * White Micro Canopy
• 4 * M1.4x4mm screws
• 1 * 1/4'' Camera Mounting hardware
