Product Details
＋
Residential Installation Video
Multiple Control Methods
Residential Automatic Sliding Door Closer Include

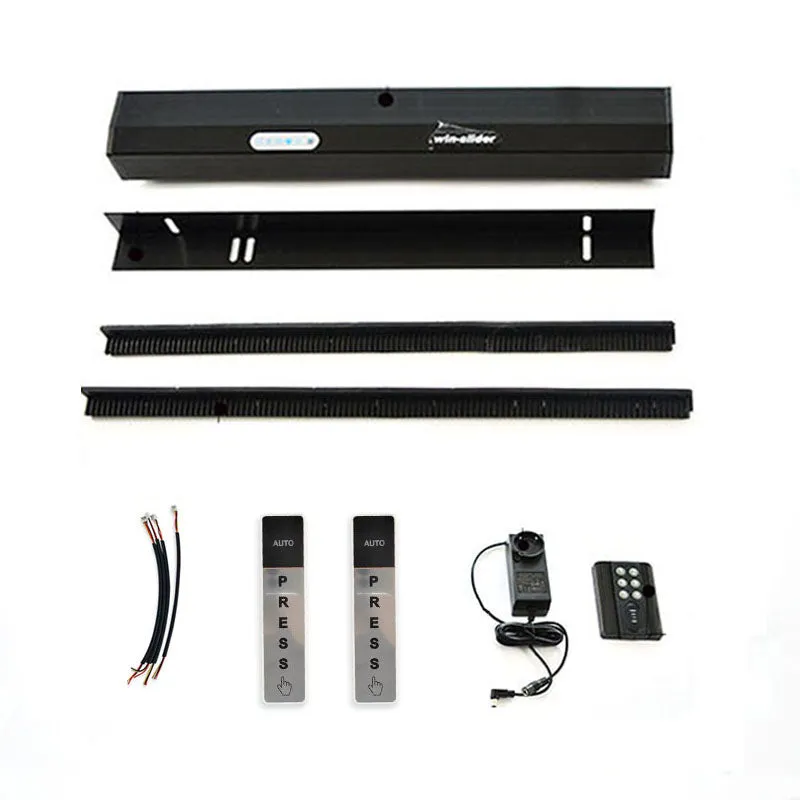

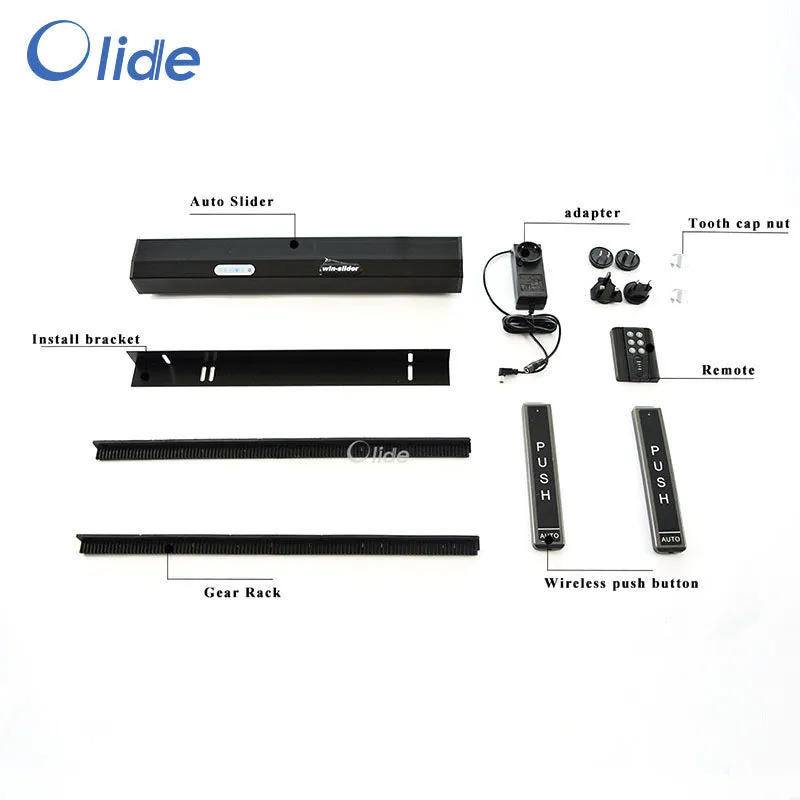

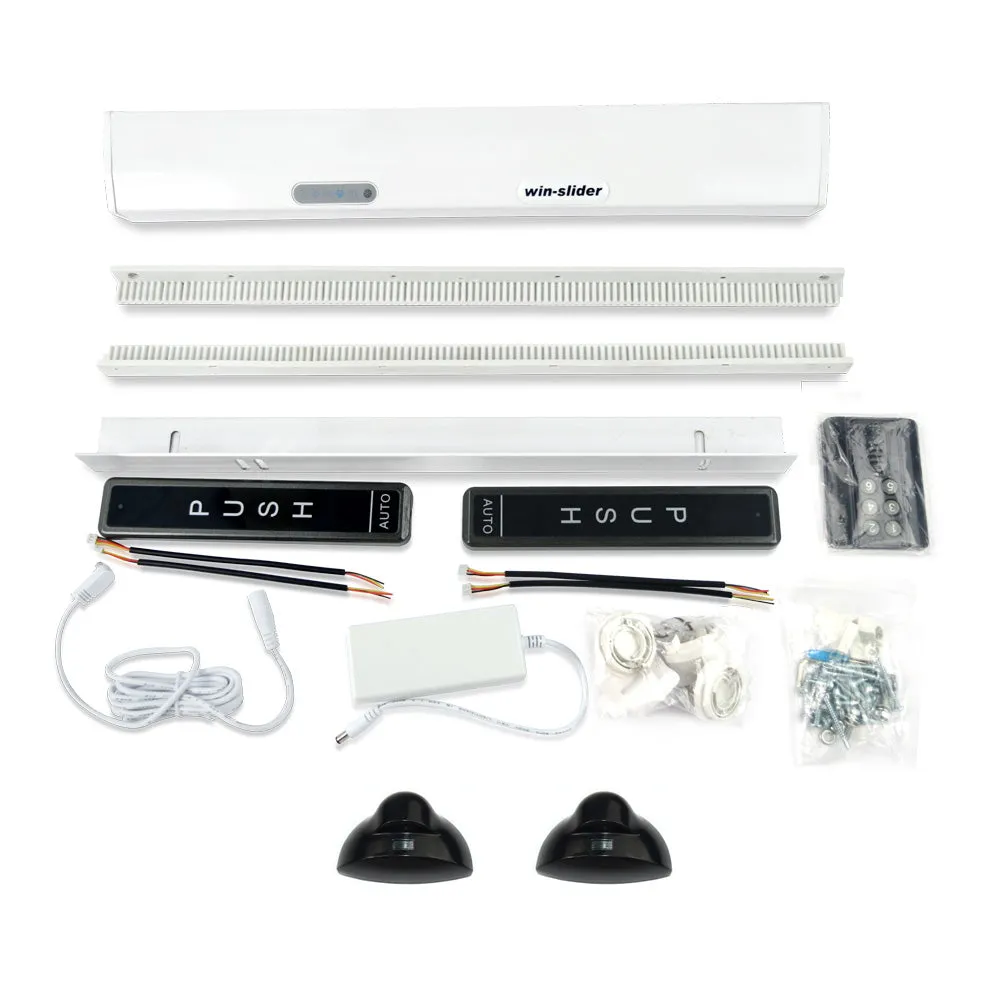

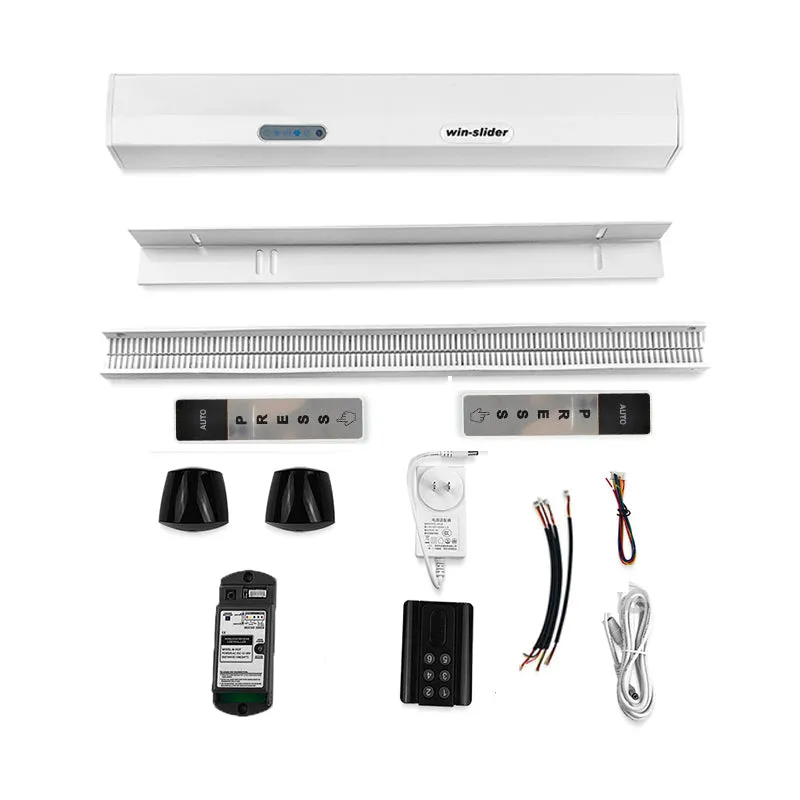

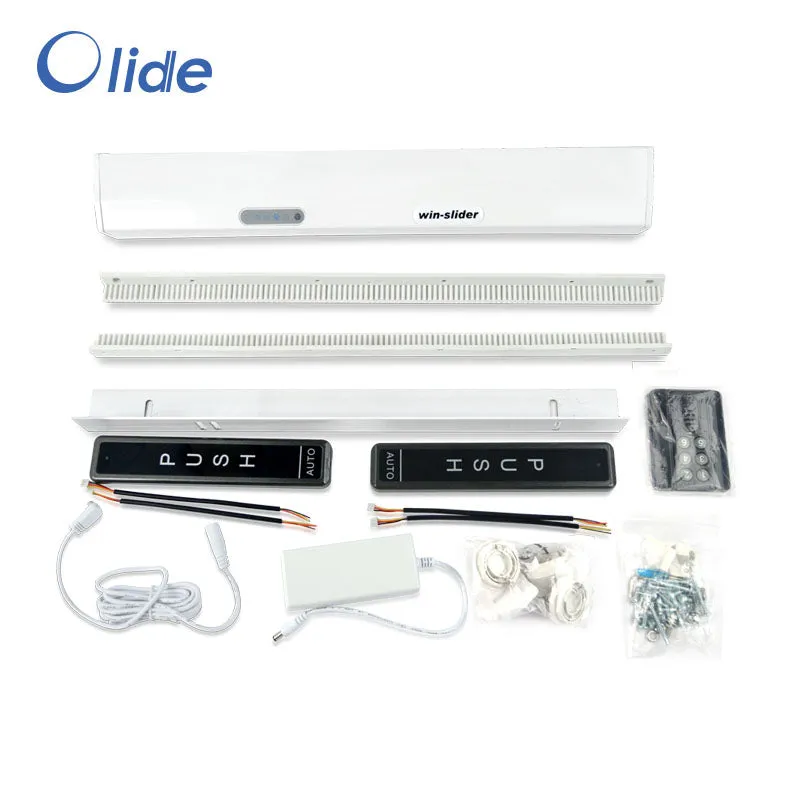

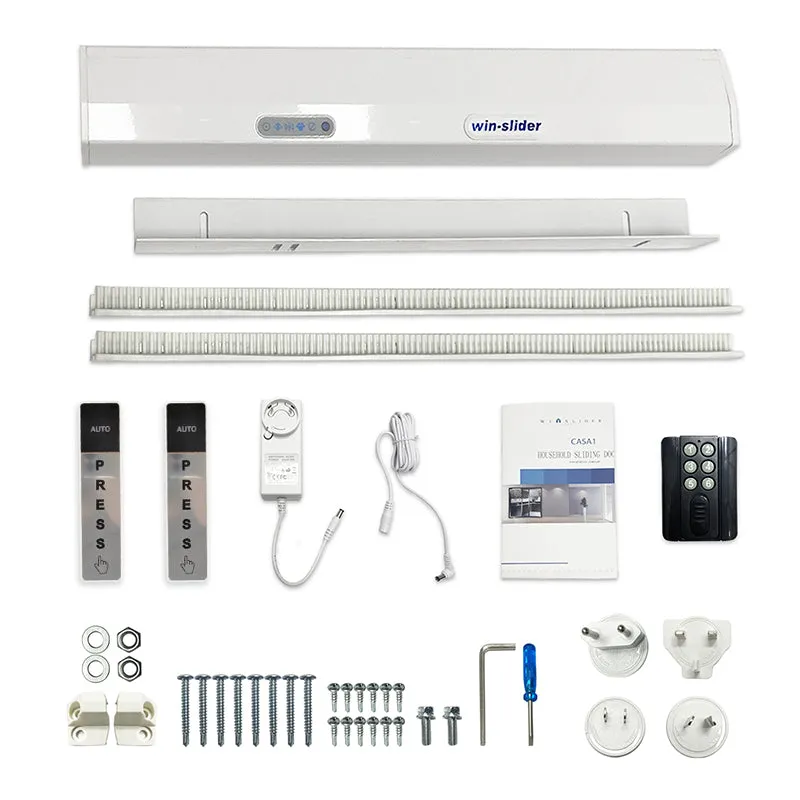

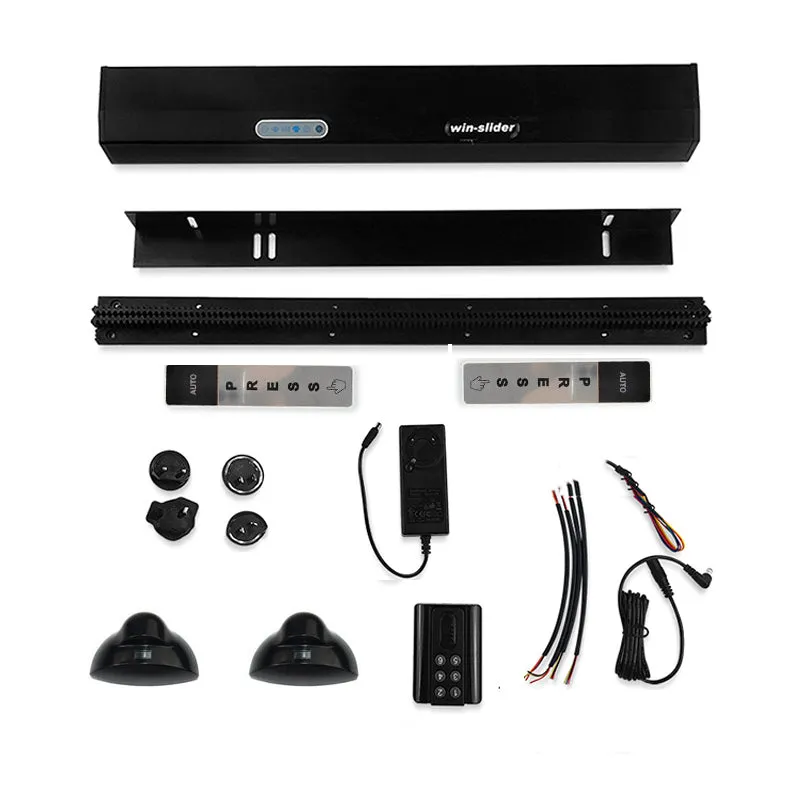

One set electric door opener includes: Auto slider, adapter, install bracket, remote, tooth cap nut, one pair wireless push button and gear rack.
Kitchen Electric Sliding Type Door Opener Features
1. Easy to install, without change existing door structure.
2. Compact size, nice appearance and modern design.
3. System can apply with sensor, remote control, push button, pet switch, photocell, card reader, lock and so on.
4. Window and door mode can be switched arbitrarily.
5. 433.92 hz module, can be suit with smart-home(Alexa, google home assistant, phone app). Extra wifi switch is needed.
Kitchen Electric Sliding Type Door Opener Data Adjustment
Five Mode Available
- Automatic mode: the door will open when a sensor is triggered and close after the preset dwell time has elapse(all signal working normal)
- Hold-open-mode: the door will open and remain open until another mode is select
- Lock mode: door will close and remain closed until another mode is select by remote system will lock if there is a E-lock connect to it( in that mode, only remote signal is available)
- Pet mode: For use with pet sensors and when a pet opening width has been set(see below). Will open the door to the pet opening width when any pet sensor is triggered and close after the preset dwell time has elapsed.
- Manual mode: the door can be manually operated, the system will not drive the door.
Remote Control Introduction
Kitchen Electric Sliding Type Door Opener Installation
Kitchen Electric Sliding Type Door Opener Technical Specifications
Applications：Door of kitchen and balcony. Office, shop front and aisle. French window or other sliding windows.
| Power supply: | 100-240V |
| Max weight: | 80kg |
| Max width: | 5 meters |
| Standard track: | 1 meter(Length can be customized) |
| Color: | White/Black |
| Length of track: | 0.5 meter/pc |
| Product measurement: | 510mm*150mm*100mm |
| Applications | Door of kitchen and balcony, office, shop front and aisle; french window or other sliding windows |
