Product Details
＋

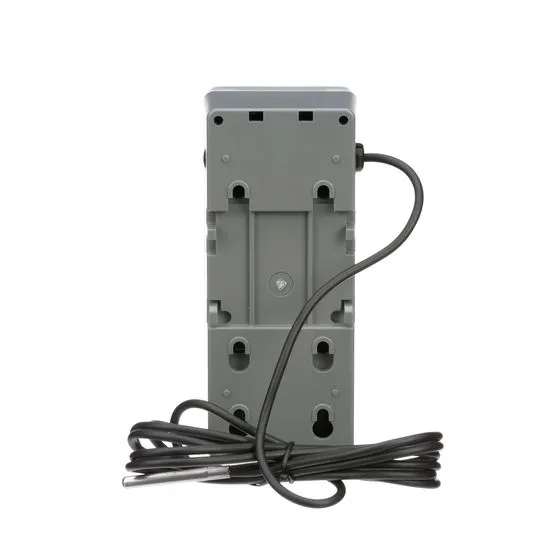

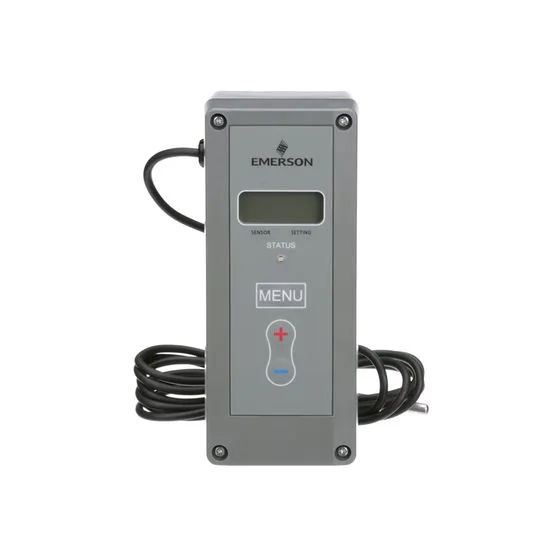

Emerson White-Rodgers 16E09-101 Universal Electronic Refrigeration Temperature Control, 24/120/208/240V
Electronic Temperature Control for Refrigeration or Heating Applications, Alarm output With Selectable Delay, (SPDT) Range -40 to 220° F and Differential From 1°F to 30°F, Requires NO Additional Common Wire On 2.5A or Higher Applications, Includes 7.5' Temperature Sensor
Superior temperature control and accuracy for both refrigeration and heating applications
Features and Benefits
- Multiple input voltages (24/120/208/240 volts) with no common wire required on electrical loads greater than 2.5 amps uninterrupted
- Reduces inventory - replaces most competitive mechanical and electronic refrigeration controls
- Electronic temperature accuracy/digital display
- Alarm output (with selectable delay - up to 99 minutes)
- Adjustable anti-short cycle delay, Set-point locking function
- Multiple sensor option can be used with 1 or 4 sensors
Specifications
| Range: | -40 to 220°F |
| Differential: | 1 to 30°F |
| Switch Action: | SPDT |
| Amperage: | 16.0 FLA, 96.0 LRA at 120 Vac, 9.2 FLA, 55.0 LRA at 208 Vac, 8.0 FLA, 48.0 LRA at 240 Vac, 16.0 Resistive |
| Set Point Range: | -40°F to 200°F (-40° to 104°C) |
| Overall Dimensions: | 6.75”H X 3.00”W X 2.57”D |
Cross Reference
| Danfoss: | UT72 |
| Honeywell: | T4031A1073, T4031C1004, T4031C1012, T6031A1029, T6054A1005, T6054A1054, T675A1045, T675A1136, T675A1425, T675A1441, T675A1458, T675A1508, T675A1516, T675A1524, T675A1540, T675A1565, T675A1706, T675A1722, T675A1771, T675A1854, T675F1032, T678C1005, T7079A1004, T7079A1012, T7079A1046, T7079A1053 |
| Ranco ETC Temperature Controls: | 060-100, 060-101, 060-109, 060-200, ETC-111000, ETC-112000 |
| Johnson Controls: | A19ABA-40C, A19ABC-24C, A19BAB-3C, A19BAC-1C, A19BAF-1C, A19BCC-2C, A319ABC-12-01, A319ABC-24-01, A320ABC-1C, A419ABC-1C |
| White-Rodgers: | 1609-33, 1609-100, 1609-101, 1609-102, 1609-103, 1609-104, 1609-105, 1687-9, 201-8, 201-20, 230-22, 241-2, 2A37-1 |
