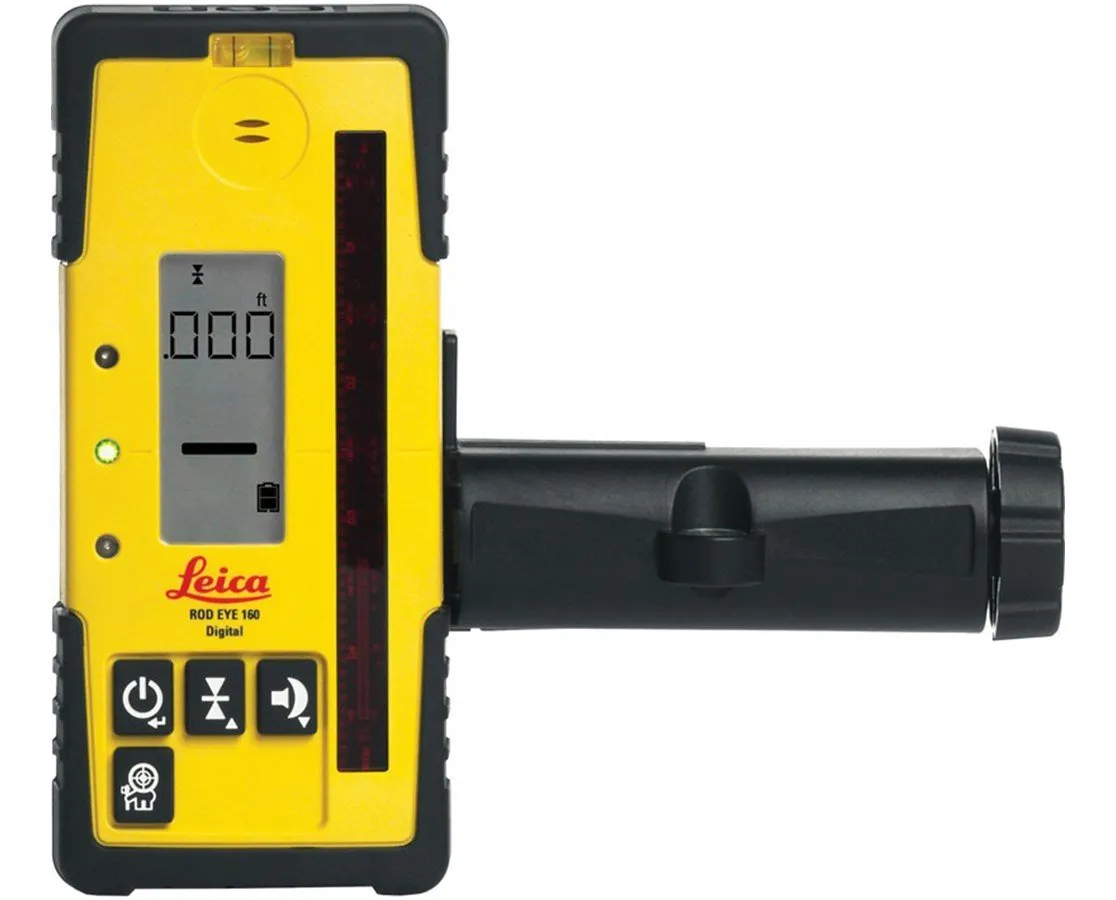

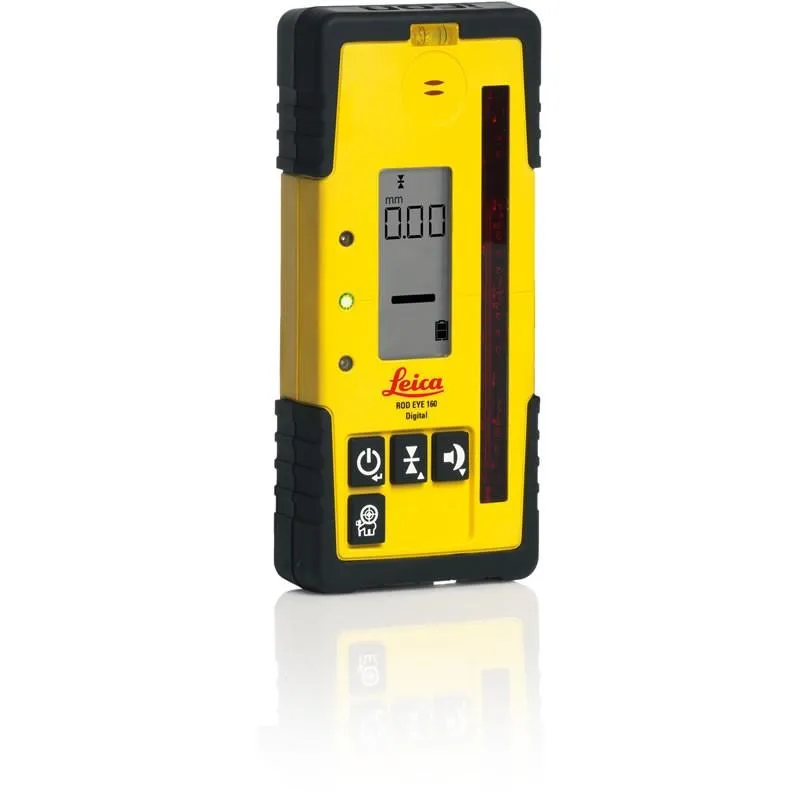

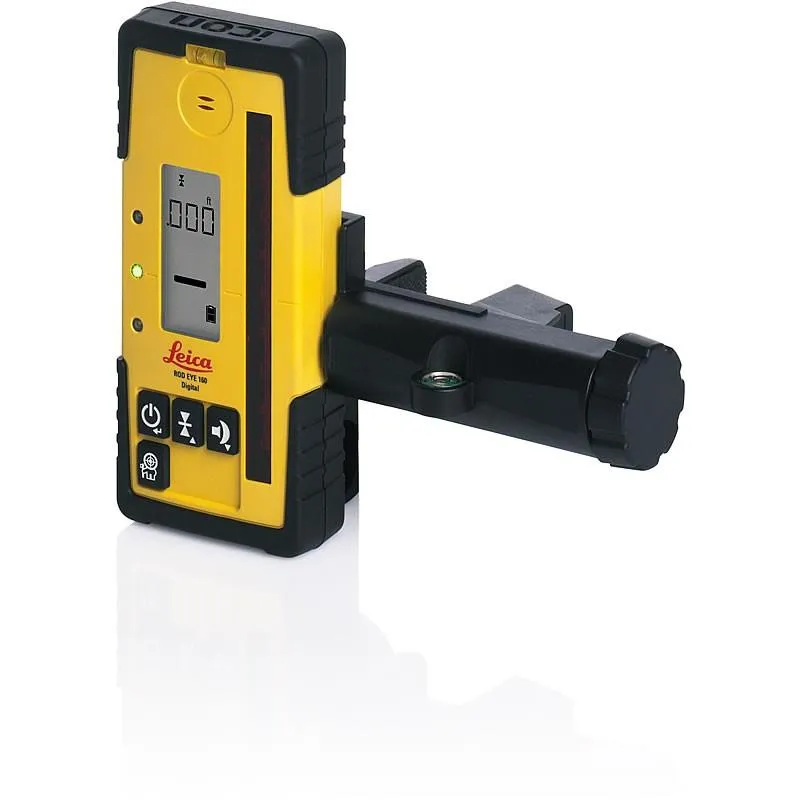

Leica Rod Eye 160 Digital Laser Receiver

The Leica Rod Eye 160 Digital Laser Receiver is a laser detector designed for Leica Rugby leveling lasers. It features 15 arrow display channels, two large graphic displays on the front and back, and three bright LEDs that can be used as a reference for the receiver’s position. Flashes of strong strobes are detected and ignored with the anti-strobe protection to ensure will not interfere with the receiver’s function. Also featured are the capture function that allows saving of measurements and the menu function for saving setting preferences.

The Rod Eye 160 displays measurements in mm, cm, in, fractions of in, and ft. The extra-long reception window includes the unique technology that provides accurate digital input. Detecting the laser is made easy because the device beeps twice when it passes through the laser and there are four audio settings of up to 100 decibels. If the detector is moved out of the laser’s range, an arrow will be displayed to indicate the direction to move to return to the right position.

This laser receiver is made of durable materials with a protective over mold that protects it from drops. It is also dust-tight and waterproof with the IP67 protection rating. The device is powered by two standard alkaline batteries and can function up to over 50 hours with it. It auto shuts off after several minutes of not using it and a small laser icon alerts when the batteries are getting low. A rugged rod clamp is included to keep the receiver safe and handled firmly. This bracket has a level vial to ensure good alignment.

Features

15 arrow display channels
Digital readout of measurements in mm, cm, inches, fractions of inches and feet
Anti-strobe protection
Capture function to store and display a measurement
Menu function for settings saving
Beam finding beeps
Rod bracket
Level vial ensures good alignment
Four audio settings for noisy job sites
50-hour battery life
Water-resistant and dustproof
IP67 protection rating
Dual LCD display
3 bright LED indications
Protective overmold
Low battery alert

Includes

Leica Rod Eye 160 Digital laser receiver 789924
Bracket
User manual

Specifications

General
Dimensions	6.8" x 3" x 1.1"
Protection Class	IP67 (protection against dust and water submersion)
Bracket/Clamp	Included
Accuracy
Super Fine	±0.5 mm
Fine	± 1 mm
Medium	± 2 mm
Coarse	± 3 mm
Very Coarse	± 5 mm
Battery/Power
Power Source	AA alkaline batteries
Battery Life	50 hrs
Low Battery Indicator	Yes
Temperature
Operating	-4°~ 122°F (-20°~ 50°C)
Storage	-40°F~ 158°F (-40°C~ 70°C)
Volume Settings
Loud	105 dBA
Medium	95 dBA
Low	65 dBA
Features
Channels	15
Display	Dual LCD
Laser Detection Height	5"
Automatic Shutoff	Yes
LED Indicators	Yes
Anti-Strobe Technology	Yes
Last Beam Memory	Yes
Beam Finding	Yes
Numeric Readout Height	3.5-inch
Digital Readout	mm, cm, in, in (fractions), ft
