MRCOOL Olympus 24,000 BTU 24.6 SEER2 2-Zone Ductless Heat Pump Split System 12K 12K
The MRCOOL Olympus 24,000 BTU 24.6 SEER2 2-Zone Ductless Heat Pump Split System 12K 12K is a cost-saving heating and cooling solution for your home. With a SEER2 of 24.6 and 10.5 HSPF, this is also an Energy-Star certified efficient unit that uses eco-friendly R-410A refrigerant. Designed to be installed by an HVAC professional, this system gives you the flexibility to heat and cool two spaces up to 600 square feet with the 12K air handlers. For peace of mind, rely on the 7-year compressor, 5-year parts, and 1-year remote warranty when you simply register the unit online and have it installed by a professional.
Features:
- Multi-Zone: Heat and cool two areas up to 600 square feet with the dual 12K BTU wall mount air handlers.
- Enhanced Control from Anywhere: Control your MRCOOL® anywhere with the Smartphone App from your Apple or Android device and an internet connection.
- Superior Efficiency: With a 24.6 SEER2 efficiency, you'll save money on heating and cooling every single month.
- Follow Me Function: Keep the remote close by, and the MRCOOL® Follow Me® Function will track the air temperature around you to ensure you receive maximum comfort.
- Leakage Detection: When the MRCOOL Olympus® detects low coolant an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
- Low Ambient Cooling: Runs efficiently between -5°F - 125°F. This feature makes the MRCOOL Olympus® ideal for server rooms, greenhouses, and any other application that requires cooling all year.
- Auto Restart: Power outage? Don’t worry, the MRCOOL® auto restart will have the unit running again in no time at all.
- Quiet Running: Interior air comfort is wonderful, but not if a loud compressor keeps you up at night. MRCOOL® Olympus runs efficiently, effectively, and quietly all at the same time.
- Timer Function: You can set MRCOOL® Olympus to start or stop operation automatically according to your personalized schedule. This will save energy and time.
- Auto Swing: You can set airflow to personal preference, or allow MRCOOL® Olympus to automatically distribute air evenly throughout the space.
- Sleep Mode: 24-Hour Comfort, MRCOOL made Sleep Mode easy to program to save money, and let you sleep a little easier.
- Louver Position Memory: Horizontal louver will automatically move to the same position as you set last time the unit was turned on.
- Gold Fin® Condenser: Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.
- Digital Assistant Ready: The new MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Warranty: The Olympus Multi-Zone comes with a standard 5-year limited parts warranty, a 7-year compressor warranty, and a 1-year remote warranty for the original registered owner.

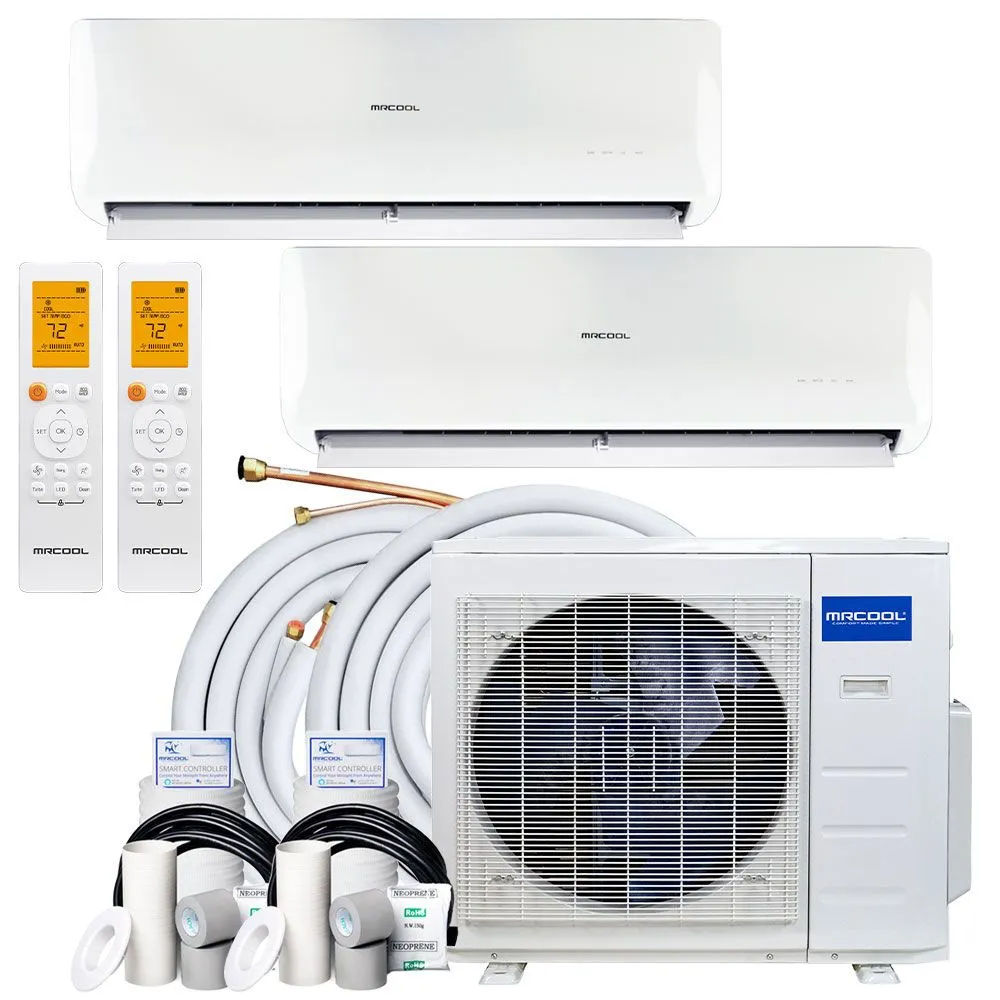

What's Included:

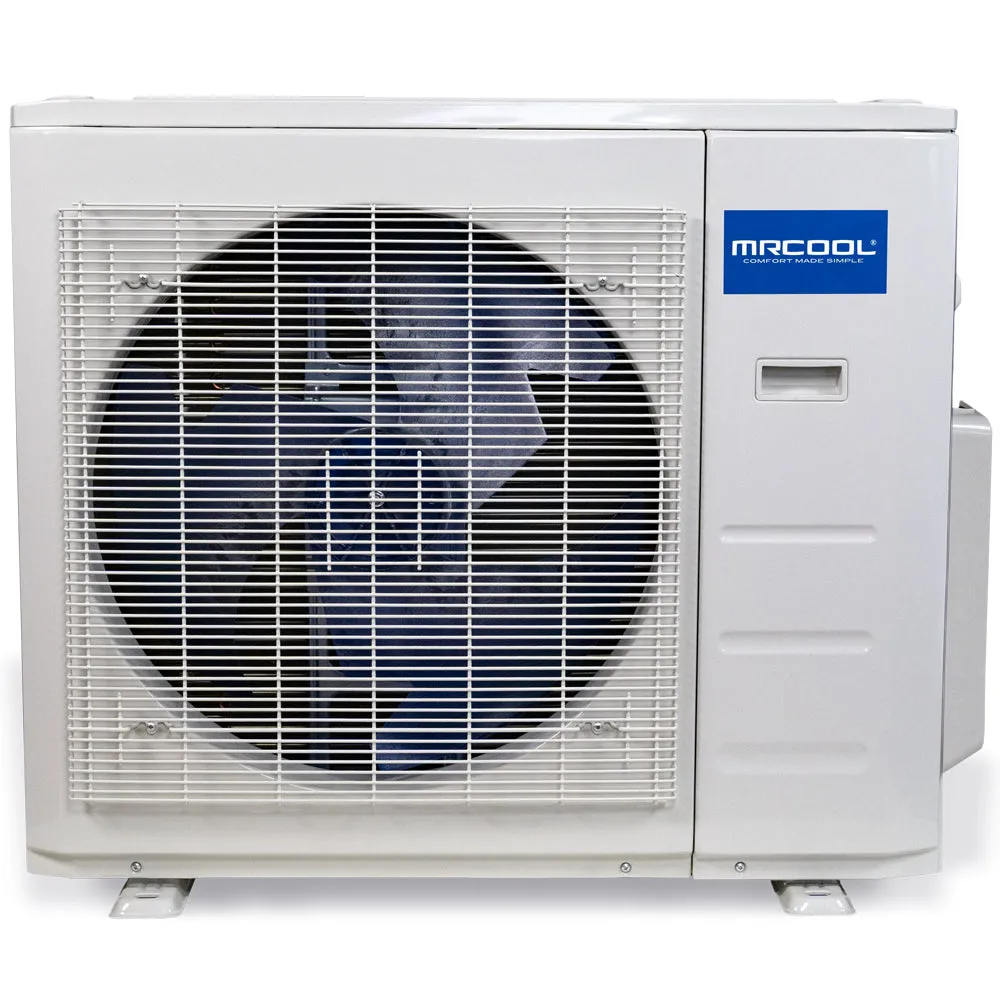

- 1x MRCOOL® Olympus 27,000 BTU 3-Zone Ductless Mini-Split Condenser - 230V/60Hz

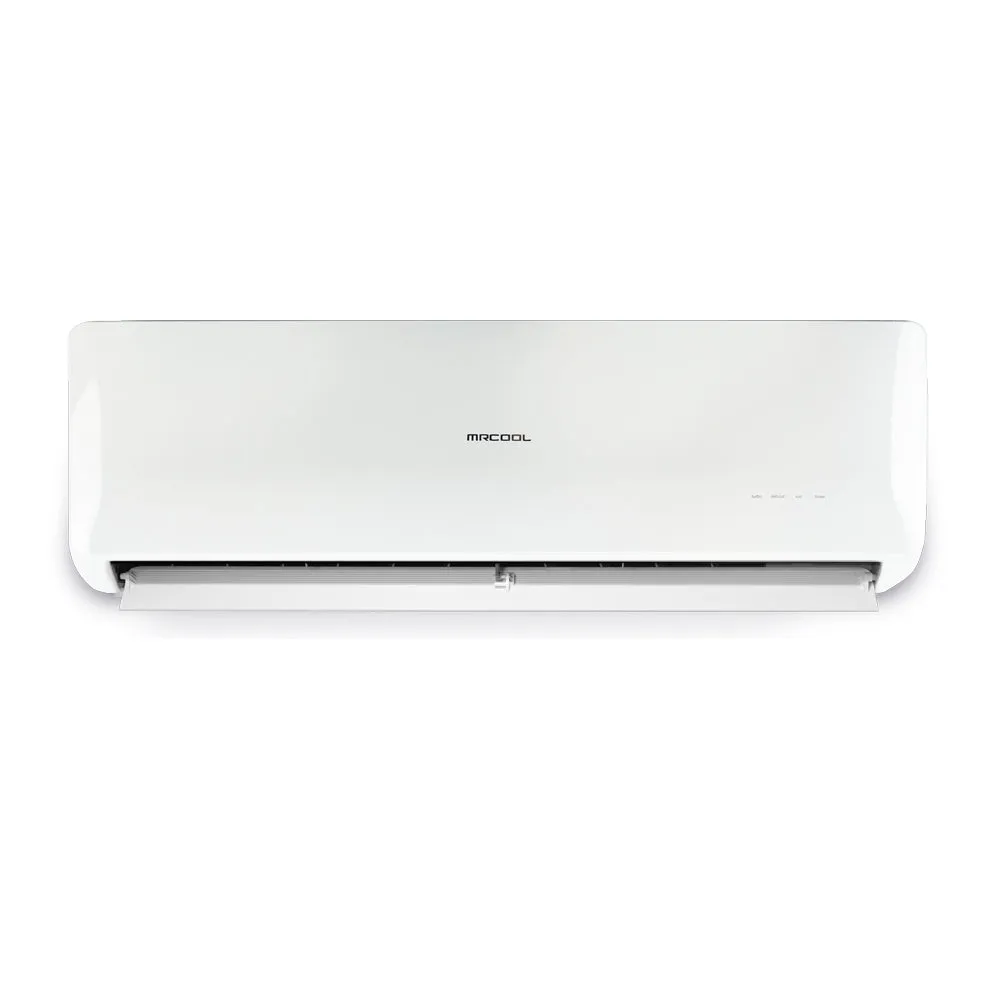

- 2x MRCOOL® Olympus 12,000 BTU Ductless Mini Split Wall Mounted Air Handlers 230V/60Hz

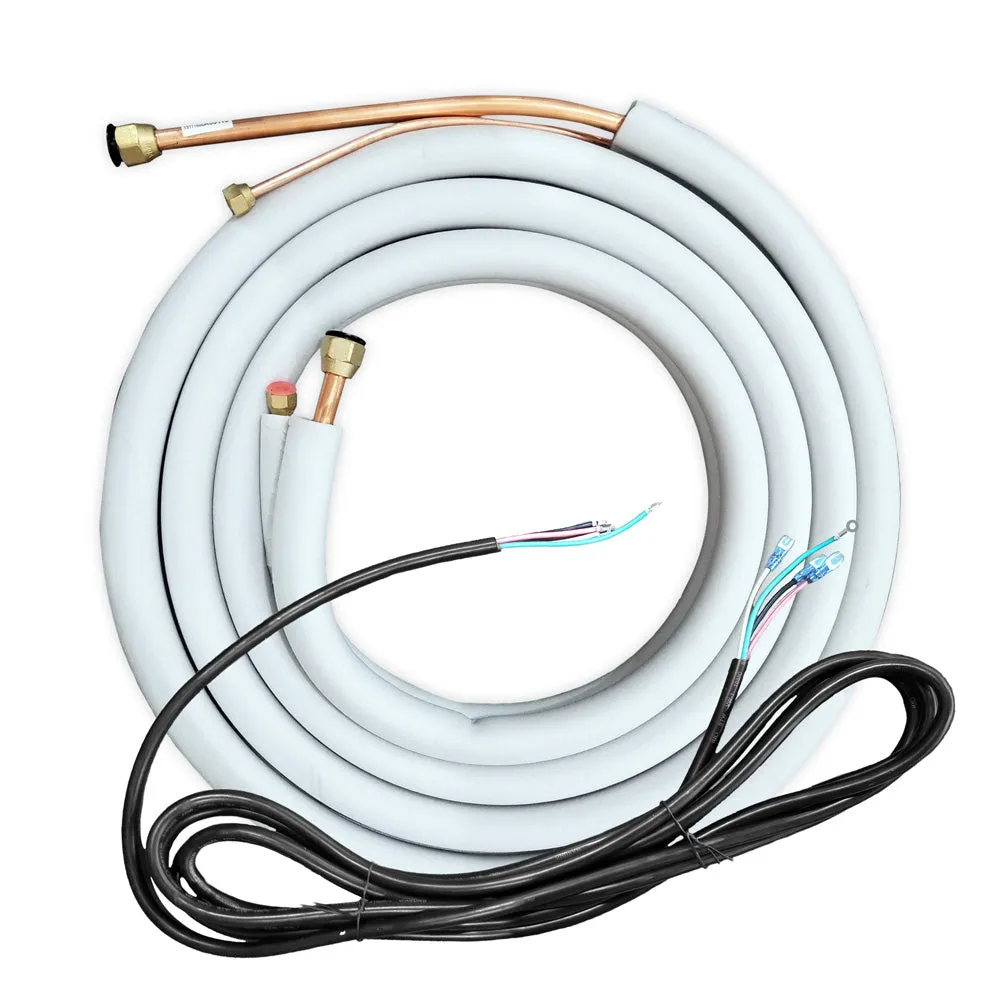

- All accessories needed for system installation
Condenser Specifications:
BRAND | MRCOOL® |
SERIES | Olympus Multi-Zone |
MODEL | MULTI3-27HP230B |
GTIN | 00840255522007 |
UPC | 840255522007 |
SEER | Up To 23.8 |
SEER2 | 24.6 |
EER | Up To 12.5 |
EER2 | 12.7 |
HSPF-4 |
10.5 |
HSPF-5 |
8.8 |
HSPF2-4 |
9.3 |
HSPF2-5 |
7.1 |
COOLING CAPACITY (BTU) |
28000 |
HEATING CAPACITY (BTU) |
28000 |
VOLTAGE (V) |
208-230 |
PHASE | 1 |
CYCLE | 60 |
MAX FUSE BREAKER (A) |
30 |
MIN CIRCUIT AMPACITY (A) |
24.5 |
ZONE CAPACITY |
3 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME (OZ) |
91.7 |
DECIBEL RATING (DBA) |
61 |
LIQUID LINE SIZE |
1/4 |
SUCTION LINE SIZE |
3/8 |
COMPRESSOR MOTOR TYPE |
Twin-ROTARY |
CONDENSER FAN MOTOR RPM |
1050/900/850 |
OVERLOAD PROTECTION |
Yes |
ENERGY STAR COMPLIANT |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
REGISTERED PARTS WARRANTY |
5-year |
REGISTERED COMPRESSOR WARRANTY |
7-year |
REGISTERED REMOTE WARRANTY |
1-year |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
RESTRICTED STATES |
GU, PR, VI |
NET DEPTH (IN) |
16.14 |
NET HEIGHT (IN) |
31.89 |
NET WIDTH (IN) |
37.24 |
NET WEIGHT (LBS) |
139.77 |
GROSS DEPTH (IN) |
19.69 |
GROSS HEIGHT (IN) |
34.84 |
GROSS WIDTH (IN) |
42.91 |
GROSS WEIGHT (LBS) |
151 |
12K BTU Air Handler Specifications:
BRAND | MRCOOL |
SERIES | Olympus Multi-Zone |
MODEL | O-12-HP-WMAH-230B |
GTIN | 00840255522045 |
UPC | 840255522045 |
UNIT TYPE |
Wall Mount Air Handler |
SHORT DESCRIPTION | Olympus 12,000 BTU 1 Ton Ductless Mini-Split Wall Mounted Air Handler - 230V/60Hz |
VOLTAGE | 208/230 V |
PHASE | 1 |
CYCLE |
60 |
BLOWER MOTOR RPM |
1050/930/870 |
FILTER TYPE |
Replaceable |
OVERLOAD PROTECTION |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
SLEEP MODE |
Yes |
AUTO COOL |
Yes |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REMOTE CONTROL INCLUDED |
Yes |
ENERGY STAR COMPLIANT |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
REGISTERED PARTS WARRANTY |
5-year |
REGISTERED REMOTE WARRANTY |
1-year |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
RESTRICTED STATES |
GU, PR, VI |
NET DEPTH |
8.86 in |
NET HEIGHT |
11.61 in |
NET WIDTH |
31.30 in |
NET WEIGHT |
22.93 lbs |
GROSS DEPTH |
14.57 in |
GROSS HEIGHT |
12.01 in |
GROSS WIDTH |
34.25 in |
GROSS WEIGHT |
29 lbs |
Product Information and Guides:
Condenser
Air Handler
