Product Details
＋

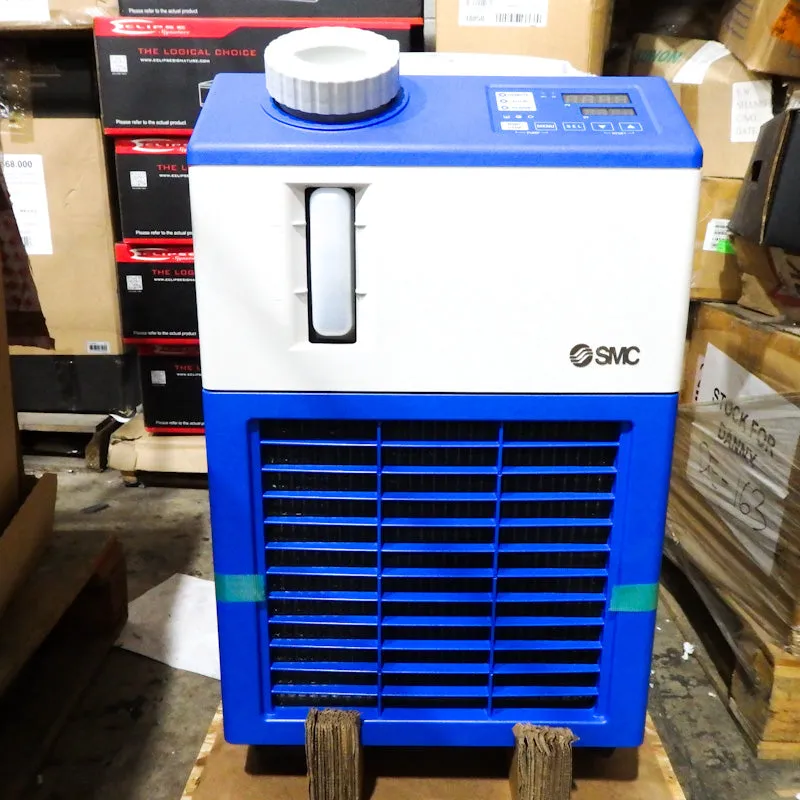

This is a SMC Corporation 230VAC Single Phase Air Cooled Thermal Chiller HRS024-AN-20. It comes as pictured and does not include any additional parts or accessories.

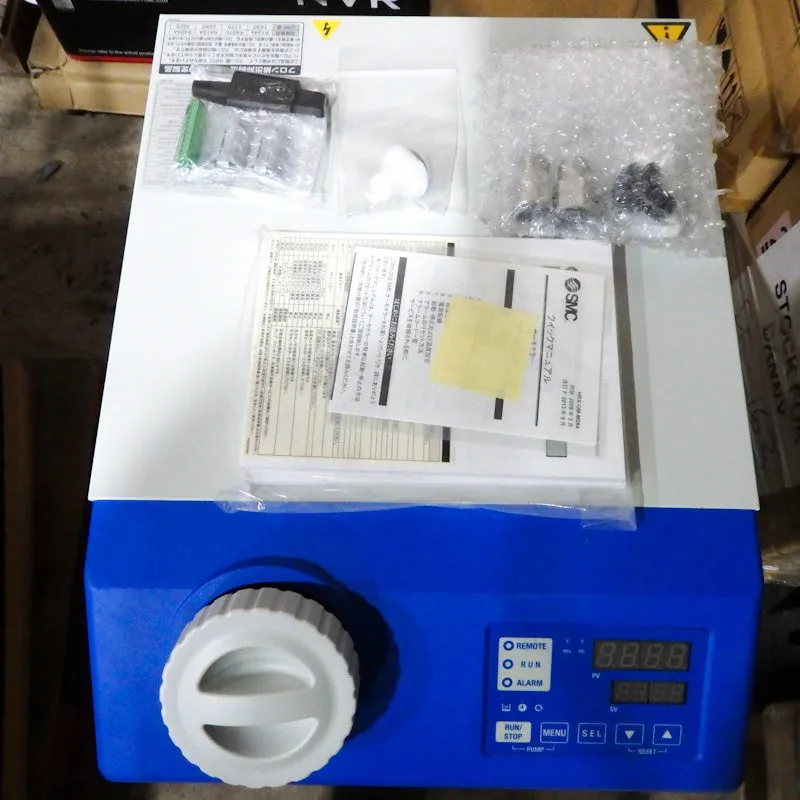

It comes as pictured and does not include any additional parts or accessories.
Features:
- Easy Maintenance, Tool-less Filter Replacement
- Operating Functions: Timer, Low Tank Level, Power Failure
- Self-Diagnosis with 31 Types of Alarm Codes
- Serial Communications and Input/Ouputs as Standard
- Shaped for Easy Supply of Circulating Fluid
- Dustproof Filter
- Unfixed Caster for Useful Transportation
- Environmental Compliance: RoHS Directive, R407C Refrigerant
- Power Failure Auto-Restart Function
- Large Cooling Capacity — 1300W, 1900W, 2400W
Applications:
- Laser Machining
- UV Curing Devices
- X-Ray Instruments
- Electron Microscopes
- Atomizing Devices
- Linear Motor
- Temperature Control of Paint Material
- Packaging Lines
- Cooling of Vacuum Pumps
Specifications:
- Capacity: 2100 W
- Controls: PID Control
- Cooling Method: Air-Cooled Refrigeration
- Flow Rate: 7/7 l/min
- Piping: NPT (with a PT-NPT conversion set)
- Power Supply: 1-Phase, 200/230 VAC
- Refrigerant Typ: R407C (HFC): Series
- HRS Series: Special Features: Display Panel for Alarms and Status
- Temperature Range: 5 to 40 ; 30% to 70% Humidity C
- Thread Type: NPT
- Weight: 94.79 lbs.
