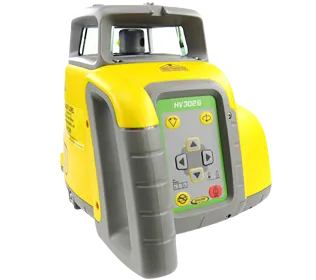

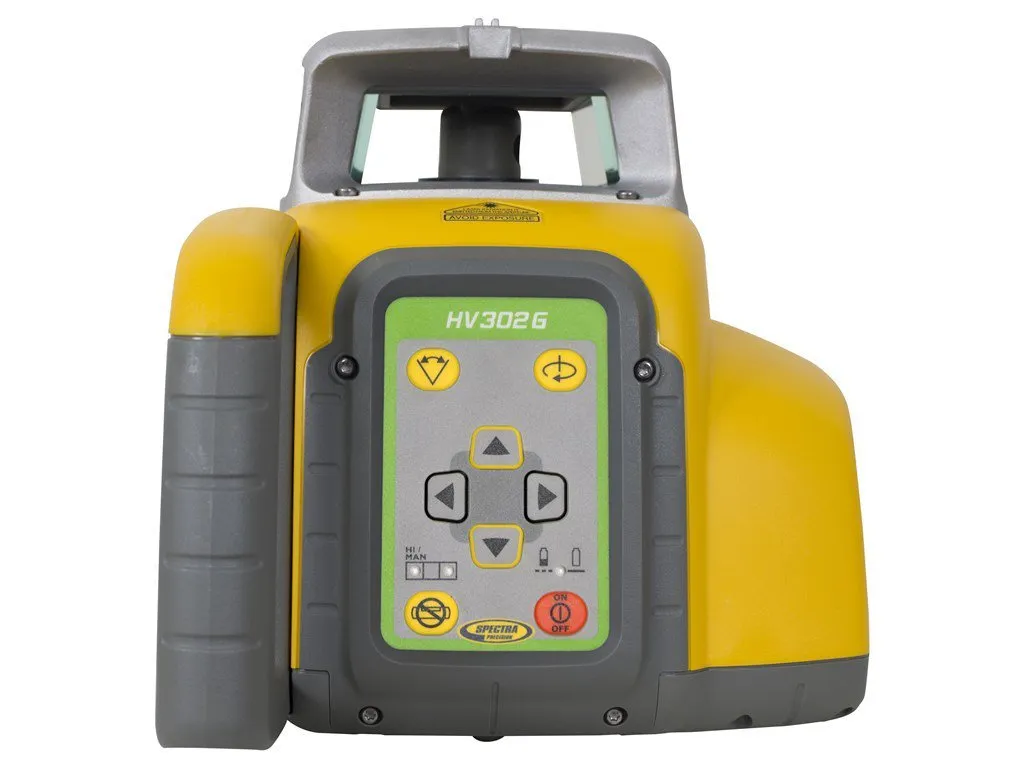

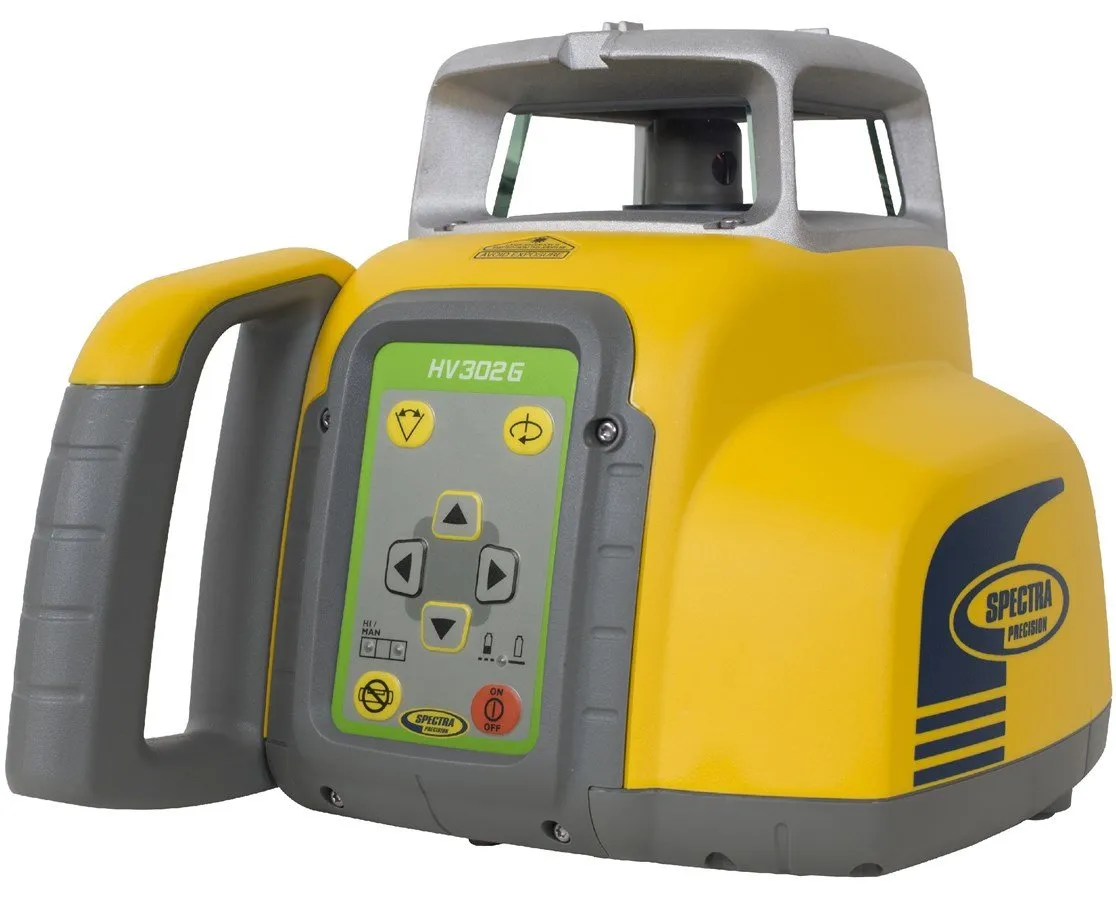

HV302G Laser with RC402N, Wall Mount, Green Target & Rechargeable Batteries
The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects.
A split beam enables plumb point transfer and 90-degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
Extremely rugged, the laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip-overs up to 1.5 meters (5 feet), resulting in reduced downtime and lower repair costs. Even in the toughest job site conditions, the laser delivers reliable, accurate performance to increase overall productivity and cost-savings. The HV302G features a simple keypad with arrow buttons, making it easy to use.
Features
- Automatic horizontal and vertical self-leveling
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working range of 75 m (250 ft) radius
- High-visibility beam - easily visible even in brightly lit conditions
- Split beam - enables plumb point transfer and 90-degree layout
- A height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range RC402N Radio Remote Control
- Optional HR150U - Interior Receiver with highly visible LEDs and built-in Magnetic Mount
- Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- Extremely durable and portable

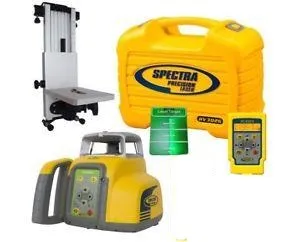

Includes:
- HV302 Green Beam Horizontal/Vertical Laser
- RC402N Radio Remote Control
- Q104234 NiMH Rechargeable Batteries
- 95720-00 Worldwide Charger
- M302 Wall Mount
- Q104124 Magnetic Target Plate Green
- Multi-language CD
- Quick user guide
- Safety Instructions
Specifications
| Leveling accuracy1,3 |
± 1.5 mm/30 m, 1/16“ @ 100 ft, 10 arc seconds |
| Operating visible radius1,2 | 75 m (250 feet) |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-selected scan sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser type | green diode laser 520 nm |
| Laser class | Class 3A/3R, max. 5 mW |
| Self-leveling range | ± 5° (±9%) |
| Leveling indicators | LED flashes |
| Radio range (HL760U) | up to 100 m (330 ft) |
| Power source | 10.000 mAh NiMH battery pack |
| Battery life1 | 30 hours NiMH 25 hours alkaline |
| Operating temp | -20°C to 50°C (-4°F to 122°F) |
| Storage temp. | -20°C to 70°C (-4°F to 158°F) |
| Tripod attachments | 5/8 x 11 horizontally and vertically |
| Dust and waterproof | Yes - IP66 |
| Weight | 3.1 kg (6.8 lbs) |
| Low voltage indication | LED battery indicator |
| Low voltage disconnection | unit shuts off |
| Warranty | 3 Years |
